Tridonic led Driver LC 100W 24V bDW SC PRE2 Compact drivers Article No: 28002417
Original price was: $120.00.$105.00Current price is: $105.00.
Tridonic led Driver LC 35W 24V MTR SC PRE2 Compact drivers Article No: 28004485
Original price was: $450.00.$400.00Current price is: $400.00.
-11%

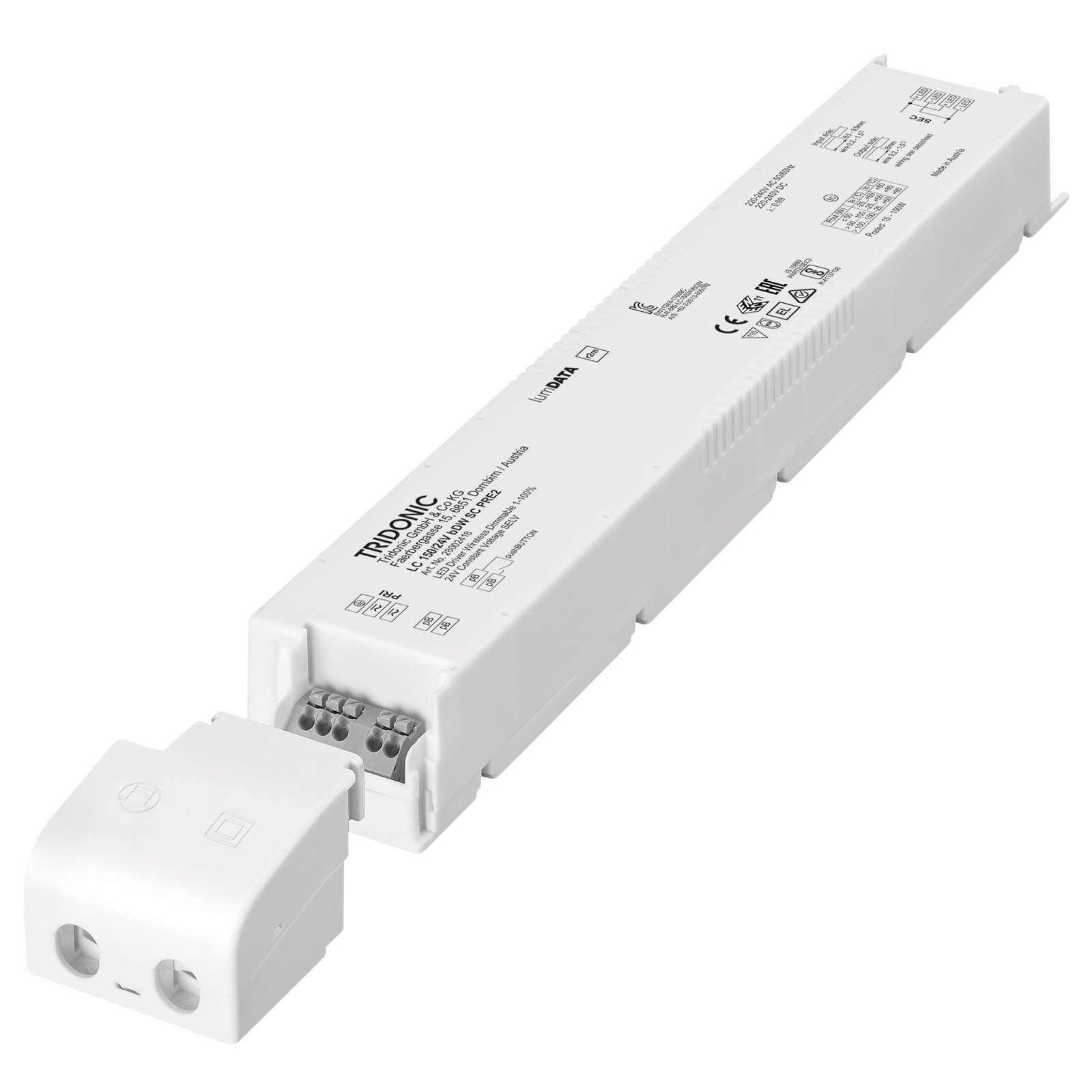

Tridonic led Driver LC 150W 24V bDW SC PRE2 Compact drivers Article No: 28002418
Original price was: $140.00.$125.00Current price is: $125.00.
14
People watching this product now!
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
Product description
- Can be integrated in Casambi systems (Casambi Ready)
- NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
- Dimmable 24 V constant voltage LED driver for flexible constant voltage strips
- Can be either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)
- The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging
- basicDIM Wireless enables different dimming options
- Forms automatically a wireless communication network with up to 250 nodes
- Dimming range 1 to 100 %
- No additional external dimmer is needed
- Suitable for emergency escape lighting systems acc. to EN 50172
- Nominal lifetime up to 50,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
- We will provide security updates for the next five years after the date of purchase of this product
Typical applications
- Cove lighting, facade accent lighting, ceiling integration
Technical details
- 24 V, 150 W

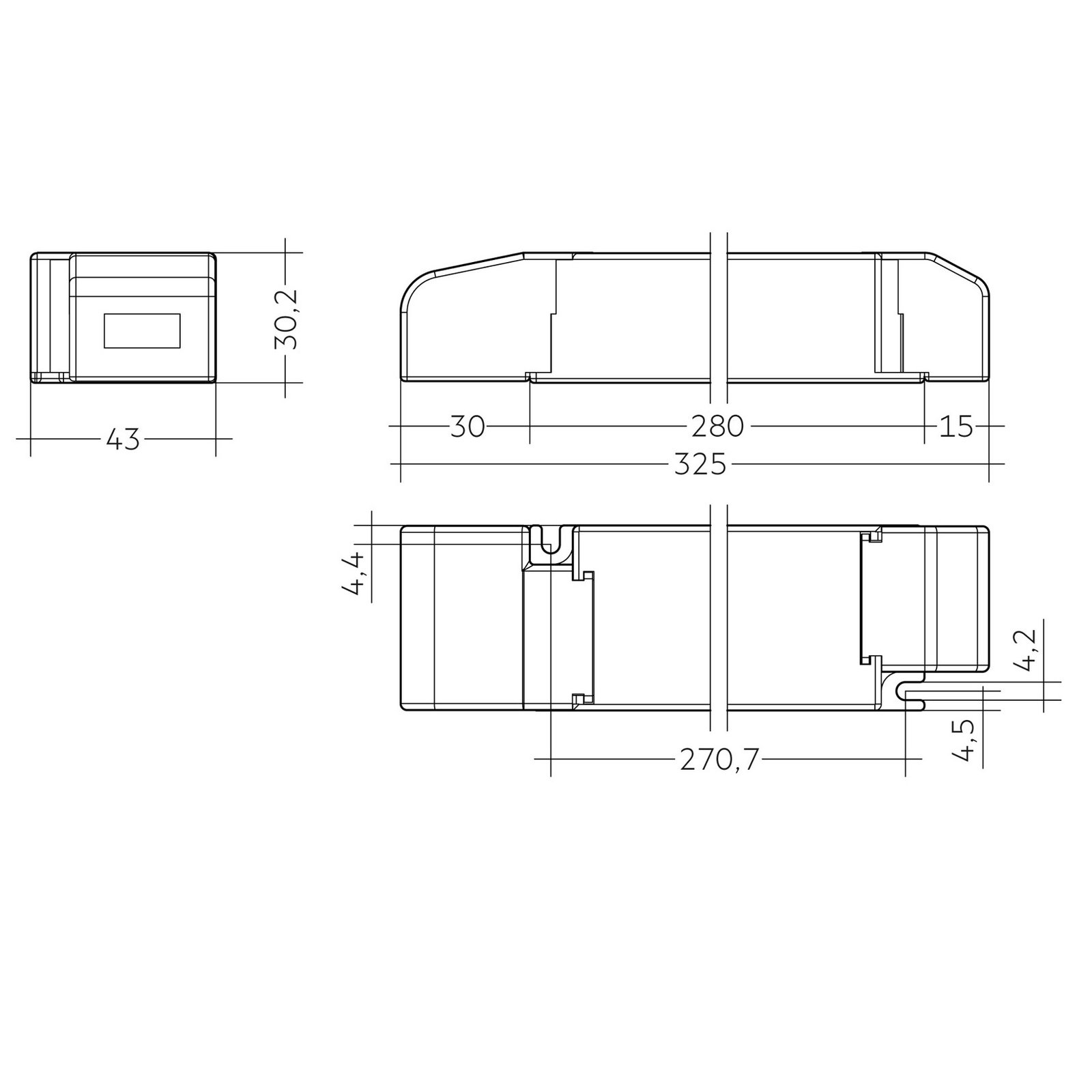

- Small design (325 x 43 x 30 mm) with stretched-compact strain relief
- Small cross section
- Push terminals for simple wiring
- Output terminals (+/–) equipped twice for more flexibility in the application
Interfaces
- basicDIM Wireless
- Terminal blocks: 45° push terminals
System solution
- Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm/m
- Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m
- In connection with Flex accessories wire to PCB plug
- Test the function of third party light sources before use at low dimming levels to ensure the dimming function works perfectly
EAN/UPC: 9006210665375
Country of Origin: AT
Customs tariff No.: 85044095
SCIP.: 1231ffdc-c85c-4aa7-8b2e-9412fac4c594
Product size
Product size
| Weight | 0.2 kg |
|---|---|
| Dimensions | 20 × 5 × 5 cm |
Product size
| Weight | 0.2 kg |
|---|---|
| Dimensions | 20 × 5 × 5 cm |
Product size
| Weight | 0.2 kg |
|---|---|
| Dimensions | 20 × 5 × 5 cm |
Product size
| Weight | 0.2 kg |
|---|---|
| Dimensions | 20 × 5 × 5 cm |
Product size
| Weight | 0.2 kg |
|---|---|
| Dimensions | 20 × 5 × 5 cm |
Product size
| Weight | 0.2 kg |
|---|---|
| Dimensions | 20 × 5 × 5 cm |
Product size
| Weight | 0.2 kg |
|---|---|
| Dimensions | 20 × 5 × 5 cm |
Product size
| Weight | 0.2 kg |
|---|---|
| Dimensions | 20 × 5 × 5 cm |
Product size
| Weight | 0.2 kg |
|---|---|
| Dimensions | 20 × 5 × 5 cm |
Product size
| Weight | 0.2 kg |
|---|---|
| Dimensions | 20 × 5 × 5 cm |
